How to install BioAtlas in VR?

This article was created to help you efficiently install and configure BioAtlas VR. Each step will be explained in detail, with clear and concise instructions to ensure a successful installation. Remember, if you encounter any issues during installation, our support team is always ready to help and support.

Attention: Before performing the installation procedure, check the Recommended Hardware for VR through this link (https://medicalharbour.zendesk.com/hc/en-us/articles/16179191686420-Quais-s%C3%A3o-os- requirements-m%C3%Animos-BioAtlas-for-VR-).

1. Turn on the Oculus and perform the “Guardian” position and account settings. Access to a Meta (Facebook) account on Oculus is required for use.


2. Turn on the Computer and Download the VR App via Link: Oculus Rift (https://www.oculus.com/Setup/?locale=pt_BR):
3. Install and Access the application, login with the same account applied to the VR.


4. Plug Quest Link Cable into VR Computer/Notebook into USB 3.0 or Type-C port.



5. In the Oculus application on the computer, pairing will be performed to recognize the VR via Quest Link.

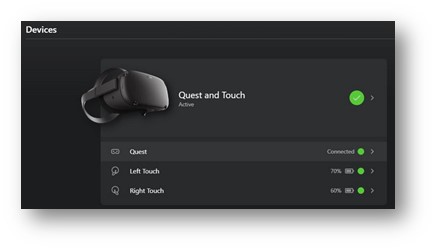

6. In the app in the devices area after pairing check if the VR is still connected. (Oculus and controllers).

7. BioAtlas VR application (The application is sent in a .zip file), it is necessary to extract “Unzip” the file to the computer.

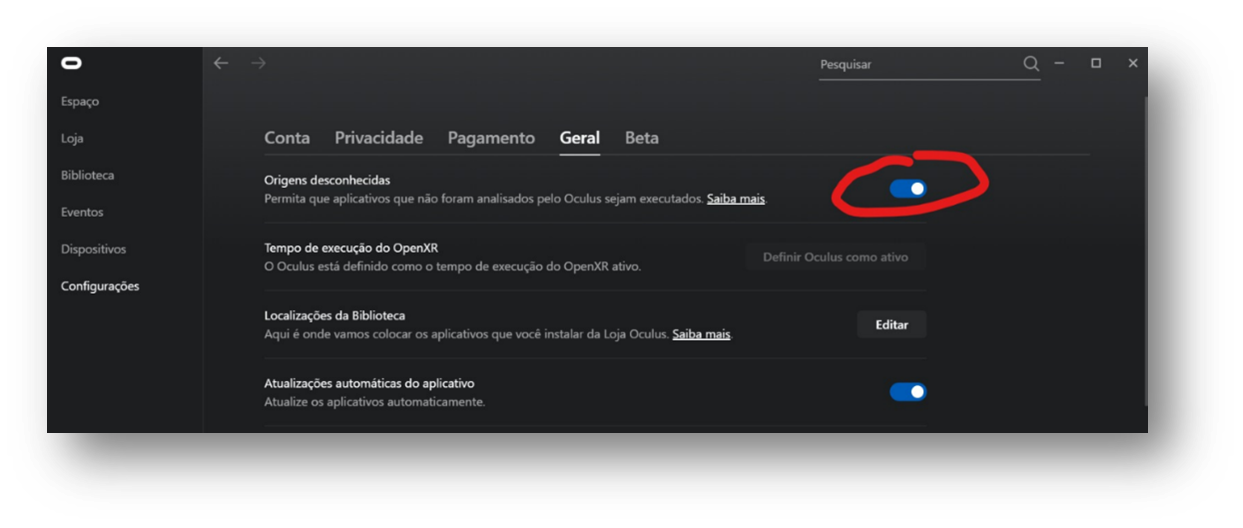

8. Enable Unknown Origins Permission in Oculus PC App in Settings
9. No Oculus iniciar o acesso ao Quest Link.

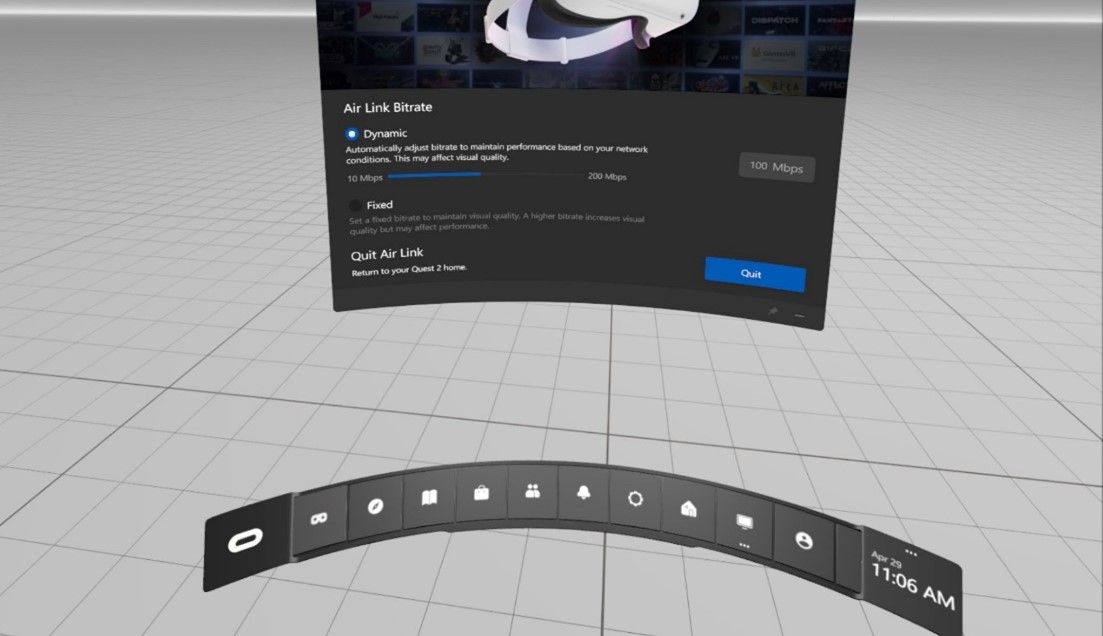

10. The Quest Link environment will appear:




11. When Quest link is ready, run the application (athenaunity.exe) on the computer.

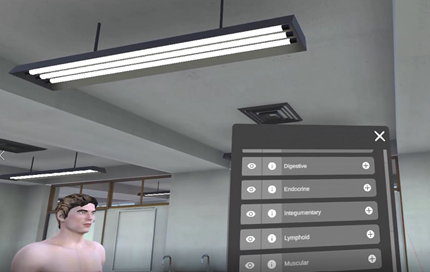

12. BioAtlas will start on the Oculus mirroring the computer screen and be ready to use.



Note: If even after reading this article you have questions, open a Technical Support Request (https://medicalharbour.zendesk.com/hc/en-us/requests/new) so that we can assist you and help you in the best possible way.
